About NIBE Products
Product Information
This section dives into the products themselves; what makes NIBE systems unique and how they deliver value to installers and homeowners. From industry-leading controls and high efficiency to ultra-quiet operation and award-winning performance, these are the points that set NIBE apart.
NIBE S2125 Air Source Heat Pump
The NIBE S2125 Air Source Heat Pump range is our premium range of R290 heat pumps. The S2125 range is available as two models: S2125-8 and S2125-12.

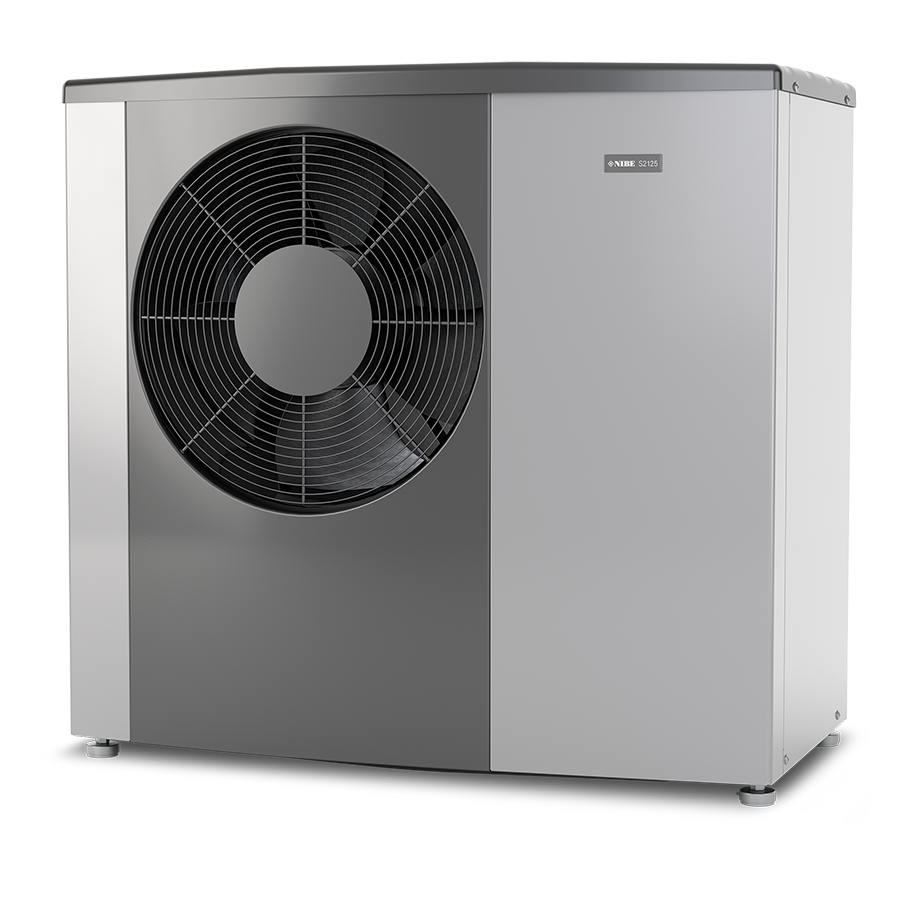

NIBE S2125-8
NIBE S2125-12
| Feature #1 | Feature #2 | Feature #3 | Feature #4 |
| Quiet Mark certified - ensuring minimal disruption to daily life and outdoor enjoyment | No R290 protective installation zone, allowing for simpler installation | No need for glycol or anti-freeze valves, simplying installation and servicing | Exceptionally efficient, with a SCOP of up to 5.33 |
View the full product page
NIBE F2050 Air Source Heat Pump Range
The NIBE F2050 Air Source Heat Pump range is our R32 refrigerant offering. The F2050 range is available as four models: F2050-6, F2050-10, F2050-12 and F2050-16.

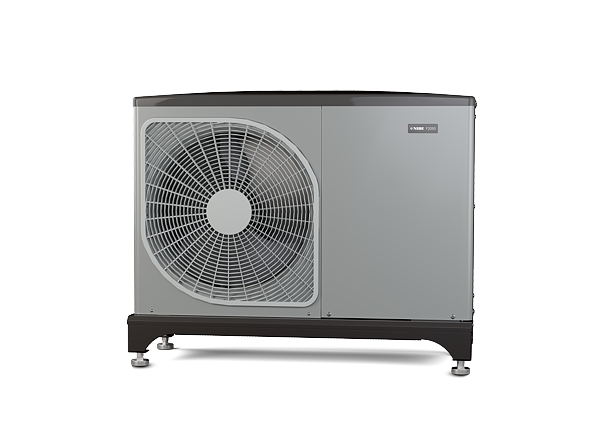

NIBE F2050-6
NIBE F2050-10
NIBE F2050-12
NIBE F2050-16
| Feature #1 | Feature #2 | Feature #3 | Feature #4 |
| Quiet Mark certified* - ensuring minimal disruption to daily life and outdoor enjoyment | No siting issues due to R32 refrigerant, meaning simpler installation | Compact installation footprint - single fan design can fit under a windowsill | Can be paired with the NIBE S-Series controller |
View the full product page
*F2050-6 and F2050-10 only
NIBE S1156 Ground Source Heat Pump
The NIBE S1156 Ground Source Heat Pump range forms part of our market leading ground source heat pump range. The S1156 is available in three models: S1156-8, S1156-13 and S1156-18.
S1156-8
S1156-13
S1156-18
| Feature #1 | Feature #2 | Feature #3 | Feature #4 |
| Quiet Mark certified - ensuring minimal disruption to daily life and outdoor enjoyment | Extremely high SCOP of up to 6.22, helping to reduce energy bills | Built in S-Series controller - Integrate with a ventilation system, solar panels, pool, additional heat source and more | Variants with built-in cooling available |
View the full product page
NIBE S1256 Ground Source Heat Pump
The NIBE S1256 Ground Source Heat Pump range forms part of our market leading ground source heat pump range. The NIBE S1256 range is identical to the S1156 range, except with the addition of an integral 180L hot water cylinder. The S1256 is available in two models: S1256-8 and S1256-13.
NIBE S1256-8
NIBE S1256-13
| Feature #1 | Feature #2 | Feature #3 | Feature #4 |
| Quiet Mark certified - ensuring minimal disruption to daily life and outdoor enjoyment | Extremely high SCOP of up to 6.22, helping to reduce energy bills | Built in S-Series controller - Integrate with a ventilation system, solar panels, pool, additional heat source and more | Variants with built-in cooling available |
View the full product page
Heat pump controllers
NIBE offers three controllers to be paired with Air Source Heat Pumps. The SMO S40, the SMO 20, and the VVM S320. The SMO S40 and SMO 20 are both wall mounted controllers that are most commonly paired with NIBE Air Source Heat Pumps. The VVM S320 uses the same touchscreen interface and controller as the SMO S40, but is paired with an integral 200L hot water cylinder.
NIBE SMO S40
NIBE SMO 20
NIBE VVM S320

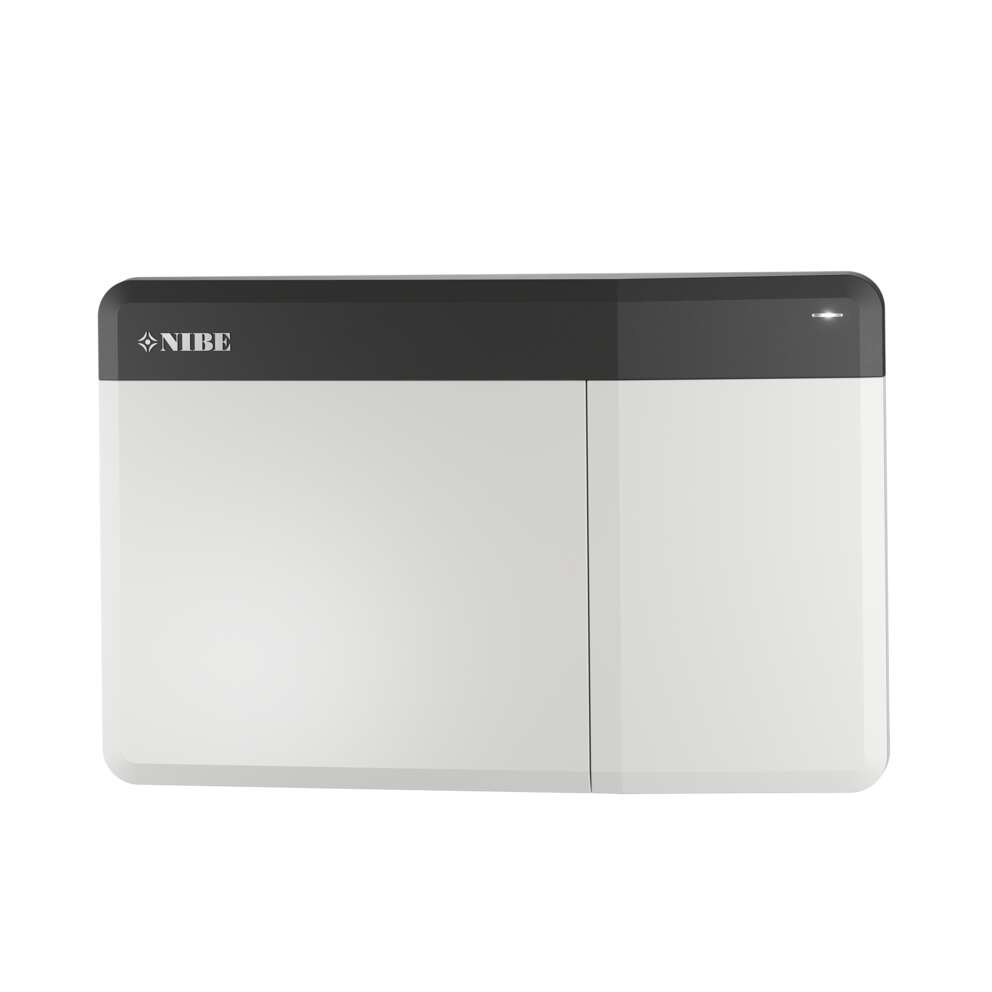

NIBE SMO S40
| Feature #1 | Feature #2 | Feature #3 | Feature #4 |
| Built-in AI machine learning function to learn the characteristics of the building and adapt accordingly | Widest PV inverter compatibility on the market - directly control and communicate with a range of PV inverters | Integrate with a ventilation system, solar panels, pool, additional heat source and more | Cascade up to 8 NIBE heat pumps - connect new units to existing ones, mix air source and ground source, share compressor load and hot water production, and more |
View the full product page here
NIBE VVM S320
| Feature #1 | Feature #2 | Feature #3 | Feature #4 |
| Built-in S-Series controller - access the same controls as the SMO S40 | Integral 200L hot water cylinder | Simplifies installation process by having water heater, immersion, self-regulating circulation pump, filling valve, manometer, safety valve, buffer and expansion vessel contained in one unit. | Can be paired with the NIBE F2050 and S2125 ranges |
View the full product page here

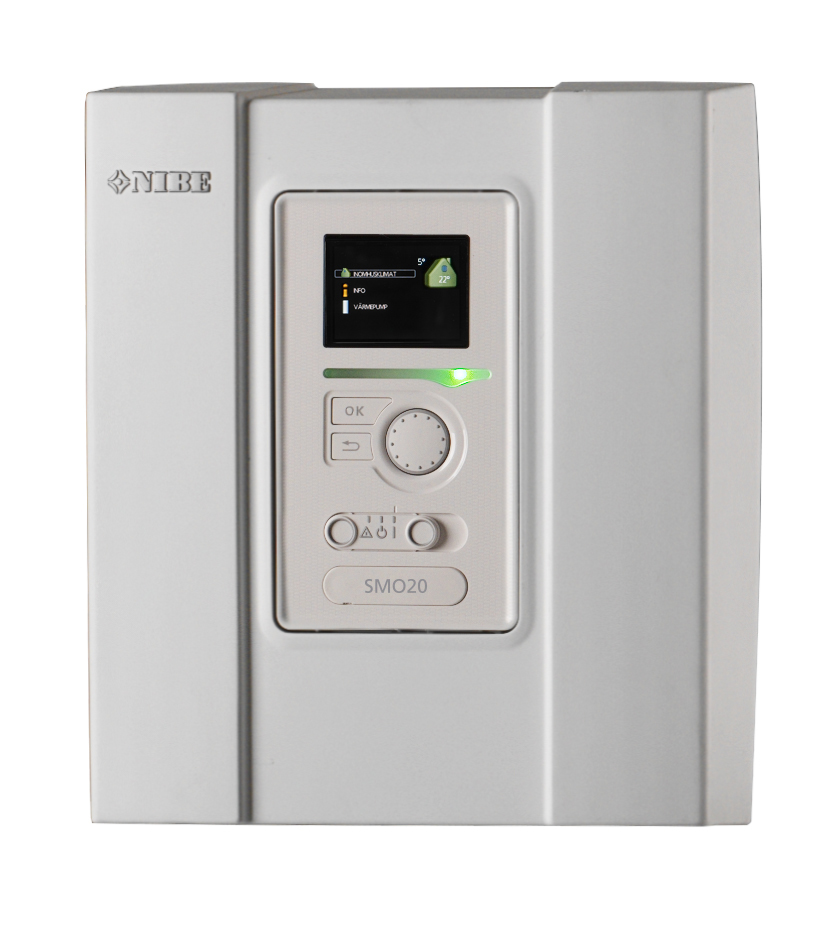

NIBE SMO 20
| Feature #1 | Feature #2 | Feature #3 | Feature #4 |
| Entry level heat pump controller for controlling a single NIBE heat pump | Simple to use scroll wheel controls | Easily adjust heating and hot water settings | For use with the NIBE F2050 range |
View the full product page here
Hot Water Cylinders
NIBE offers heat pump hot water cylinders for the provision of domestic hot water when paired with NIBE heat pumps. Our hot water cylinder range is referred to as NIBE Megacoils.
NIBE Megacoil
| Feature #1 | Feature #2 | Feature #3 | Feature #4 |
| Available in four sizes - 160L, 200L, 300L and 400L. | Can be paired with both NIBE Air Source and Ground Source heat pumps. | Manufactured specifically for usage with heat pumps | Sleek, stainless steel design |
View the full product page here
Accessories
| Product Name | Product Type | Explanation |
| Blygold Coating | Heat Pump Protection | Includes a Blygold coating to protect heat pumps being installed near to the coast from sea salt spray |
| CPD11-25/65 | Circulation Pump | Circulation pump to to move water through the heating circuit. For up to 6.5m of head pressure - for smaller systems |
| CPD11-25/75 | Circulation Pump | Circulation pump to to move water through the heating circuit. For up to 7.5m of head pressure - for larger systems |
| NIBE AXC 30 | Accessory Card | Accessory to control and communicate with additional systems. Additional systems include shunt-controlled additional heat, step-controlled additional heat, passive cooling, pool heating, PV-T systems, and more |
| NIBE BAU 30 | Wall Bracket | Bracket to mount the NIBE F2050-6, F2050-10 or F2050-12 Air Source Heat Pumps to a wall |
| NIBE GSU 40 | Ground Bracket | Ground bracket to raise NIBE F2050 heat pumps off the ground |
| NIBE HR10 | Relay Module | Relay box to act as an interface between the heat pump and external devices. Allows the heat pump to turn other equipment on / off. E.g. immersion heaters, cooling modules, external heat sources |
| NIBE KVR 10 | Condensate Water Pipe | An insulated and heated drain hose kit, designed to funnel condensation water away from the heat pump after the defrost cycle - to be paired with the NIBE F2050-6 and F2050-10. |
| NIBE KVR 11 | Condensate Water Pipe | An insulated and heated drain hose kit, designed to funnel condensation water away from the heat pump after the defrost cycle - to be paired with the NIBE S2125-8 and S2125-12. |
| NIBE KVR 13 | Condensate Water Pipe | An insulated and heated drain hose kit, designed to funnel condensation water away from the heat pump after the defrost cycle - to be paired with the NIBE F2050-12 and F2050-16. |
| NIBE UKV | Buffer Vessel | Buffer vessel range available in 40L, 100L, 200L, 300L, 500L and 1000L capacities |
| NIBE VST 05 | Diverter Valve | Three way diverter valve to re-direct flow to accumulator tank during hot water demand. For heat pumps up to 11kW |
| NIBE VST 11 | Diverter Valve | Three way diverter valve to re-direct flow to accumulator tank during hot water demand. For heat pumps up to 18kW |
