KNX and BACnet gateway

For: Users that need to communicate with KNX or BACnet networks

Why: To stay relevant in a connected world

How: 3rd party hardware gateway

Precondition: A NIBE S-series heat pump or SMO controller

Connect NIBE heat pumps to KNX and BACnet

Integrate NIBE heat pumps into a larger context:

This gateway enables full monitoring and control of NIBE heat pumps from:

• KNX TP systems, in residential and commercial building automation projects.
• BACnet/IP and BACnet MS/TP building management systems.

Connect up to 5 heat pump units and 100 points, easily added with the help of six preconfigured templates.

Main features:

You can set up this HMS/Intesis gateway for the following communication protocols:

– NIBE to KNX TP

– NIBE to BACnet/IP or BACnet MS/TP

• BTL certified
• UL certified
• Capacity for up to five NIBE units and 100 communication registers
• Compatible with ground- and air-source NIBE systems
• Connection to the NIBE unit through Modbus TCP via Ethernet
• Specific signals for NIBE accessories, including pool heating, 4-pipe cooling, integration of photovoltaic installations, multiple climate systems, and more
• Six preconfigured templates ready to be imported into your project
• Integration of different NIBE models into the same project, even combining ground-source and air-source units
• Five extra registers for specific customization
• EIA-485 bus termination and polarization enablement through a dedicated DIP switch block for BACnet MS/TP

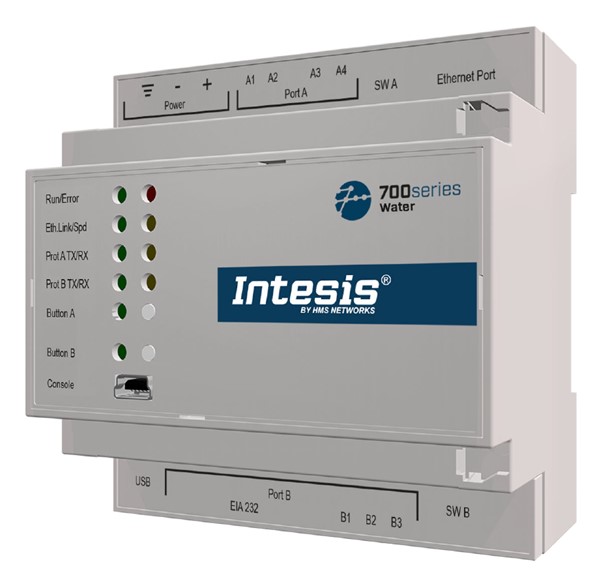

• 10 LEDs indicate the operating status of the gateway and the communication ports
• Multiple ports for serial and IP communication:

– Green pluggable terminal block for BACnet MS/TP (EIA-485 port)

– Orange pluggable terminal block for KNX

– Ethernet port for the NIBE system (communication over Modbus TCP) and for BACnet/IP

– USB Mini-B type 2.0 port for connection to the computer

• Every signal supports arithmetic and logical operations, such as multiplication, division, equality checks, and comparisons (e.g., greater than), ensuring perfect adaptation between the NIBE and BMS signals.
• USB Type A 2.0 connector for connecting a flash drive to save logs and import or export MAPS projects.
• BACnet advanced features available (trend logs, calendars, etc.).

Find more information and order it here:

KNX: https://www.hms-networks.com/p/in790nib100a000-knx-nib-nibe-heat-pumps-to-knx

BACnet: https://www.hms-networks.com/p/in790nib100a000-bac-nib-nibe-heat-pumps-to-bacnet-ip-ms-tp
